MetaClean Panels

Used in Solutions

Pharmaceutical Clean Rooms Cold Storage Facilities

MetaClean Panels

Specialized for Pharma Clean Rooms and Healthcare Facilities

Available Colors

Core Advantages

  • Hygienic Surface
  • Air-Tight Seals
  • Chemical Resistance

Key Features

  • Hygienic Surface
    Smooth, non-porous facings prevent bacterial growth.
  • Air-Tight Seals
    Ensures controlled environments free from contaminants.
  • Chemical Resistance
    Withstands exposure to cleaning agents and disinfectants.

Technical Specifications:

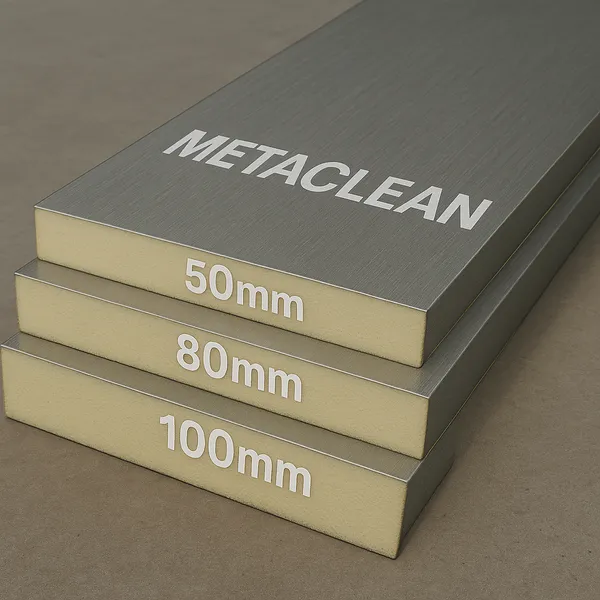

  • Panel Thickness: Available in 50mm, 80mm, and 100mm.
  • Core Material: Polyisocyanurate (PIR) foam with a density of 45±2 kg/m³.
  • Facings: Stainless Steel (SS-304/SS-316) with a thickness of 0.5mm on both sides.
  • Thermal Conductivity: ≤ 0.022 W/m·K.
  • Fire Resistance: B1-grade fire-rated PIR material.
  • Standard Width: 1000mm.
  • Length: Customizable up to 6 meters.

Applications:

  • Pharmaceutical clean rooms
  • Laboratories
  • Hospitals
  • Healthcare facilities

Technical Specifications

PropertyValue
Panel Thickness50mm, 80mm, 100mm
Core MaterialPolyisocyanurate (PIR) foam (45±2 kg/m³)
Thermal Conductivity≤ 0.022 W/m·K
Fire ResistanceB1-grade fire-rated PIR material
